Our Machinery
We use Mazak CNC machines exclusively. Each machine is equipped with the Mazatrol controller which turns programming hours into minutes when compared to conventional G code and M code programming. Every program we write is saved and stored directly onto a computer that is hard wired to each machine. There are no discs so there is no chance of losing valuable programs. Two of our three CNC lathes are equipped with “Live” tooling on a “C” axis.

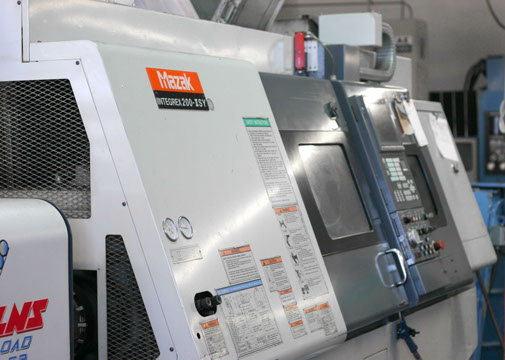

MAZAK INTEGREX 200-IISY
MULTI-AXIS TURNING/MILLING
Max Swing……………………………..26”
Max cutting dia………………………26”
Max turning length……………………43”
Spindle Bore………………………….2.99”
Spindle Nose…………………………A2-6
Standard Bar Capacity……………….2.5”
Spindle speeds……………………….35-5000 RPMS
Spindle Index (programmable) ………0.0001 degree
Spindle Horsepower………………….20/30 HP
Second Spindle Speeds……………..35-5000RPMS
Second Spindle Nose……………….A2-6
Second Spindle Bore………………….2.5”
Second Spindle HP……………………20/25 HP AC
Second Spindle Indexing………………0.001 degree
Magazine Capacity…………………….40 ATC KM Style
Rotary Tool Spindle Speeds…………..10,000 RPM
Rotary Tool Spindle HP ……………….20 HP AC
Y-Axis Travel………………………….±3.15”
X-Axis Travel…………………………..22.83”
Z-Axis Travel……………………………41.10”
B-Axis Travel…………………………….001
Rapid Traverse Rate (Y/X/Z)….1023/1496/1496 IPM
Rapid Traverse Rate (C, B-Axes)……..400 RPM, 10 RPM

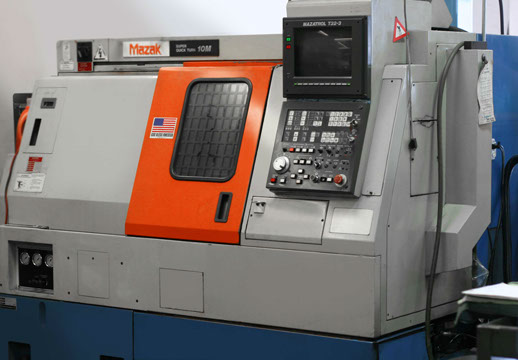

MAZAK SUPER QUICK TURN 10M LATHE
Max. Swing: 17.13 In.
Max. Machining Diameter: 9.06 In.
Max. Machining Length: 12.02 In
Spindle Bore Diameter: 2.05 In.
Spindle Speed: 35 - 6000 Rpm
X-Axis Stroke: 6.3 In.
Z-Axis Stroke: 17.93 In.
C-Axis: .001 Degrees
Turret Tool Capacity: 12
Rotary Tool Speed Range: 120 - 3000 Rpm
Rapid Traverse Rate
X & Z Axis: 1180 Ipm
C Axis: 400 Rpm
Main Spindle Motor ( Cont/ 30 Min ): Ac 10/ 15 Hp
Mazatrol T-Plus Control
6 Inch Chuck

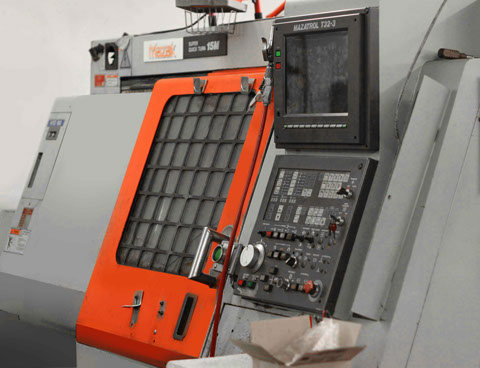

MAZAK SUPER QUICK TURN 15M LATHE
Chuck Size 8"
Max Diameter Bar Capacity 2"
Max Swing Over Bed / Carriage 20.9" / 15.74"
Max Turning Diameter 11.75"
Max Machining Length 20.78"
Spindle Motor 25 / 20 HP AC
Spindle Speed 35 - 5000 RPM
Spindle Bore 2.4"
Tools 12 (All Live)
Rapid Traverse Rates 1180 IPM
Milling Motor 5 HP
Milling Speed 3000 RPM
X-Axis Travel 7.12"
Z-Axis Travel 22.75"
C-Axis Index .001 Degrees

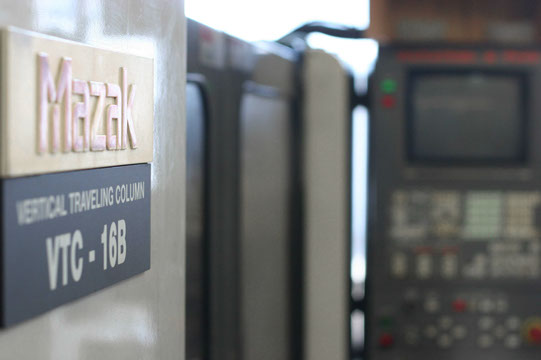

MAZAK VTC 16B MILL
Table Size.................................. 57.48” X 16.14”
Table Load Capacity......................... 1600 Lbs
X Axis Travel............................... 44.09”
Y Axis Travel............................... 16.14”
Z Axis Travel............................... 20.08”
Distance From Spindle Nose To Table Top..... 4.3” - 24.4” Max
Rapid Traverse Rates (X,Y / Z).............. 787 Ipm / 590 Ipm
Magazine Capacity........................... 24 Atc
Max. Tool Length / Weight................... 13.8” / 17.6 Lbs.
Spindle Nose................................ # 40
Spindle Speed............................... 40 - 8,000 Rpm
Main Motor.................................. 15 Hp

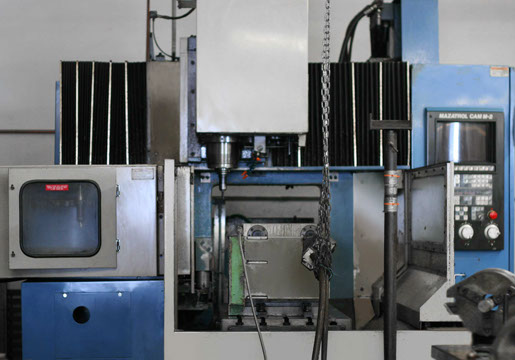

MAZAK VQC 20/40B MILL
X-Axis Travel 40”
Y-Axis Travel 25″
Z-Axis Travel 20″
Table Size 48.8″ x 21.6″
Spindle Motor 7.5 HP
Spindle Speed 28 ~ 4000 RPM
Spindle Taper CAT # 40
Magazine Capacity 30 Position ATCMazatrol Cam M2 Control
4th Axis Rotary Table
MAZAK QUICK TURN 10N LATHE
Maximum Swing...................................17.3 In
Standard Cutting Diameter...................6 In
Maximum Cutting Diameter..................10 In
Cutting Length.....................................19.69 In
Spindle Bore Diameter.........................2.2 In
Spindle Speed....................................36 - 3600 RPM
Number of Turret Positions..................8
Turret Type.........................................Octagonal Drum
Clamping Force...................................7700 Lbs.
X Axis Stroke......................................5.9 In
Z Axis Stroke......................................21 In
Rapid Traverse Rates
X-Axis..............................................390 IPM
Z-Axis..............................................590 IPM
Main Motor ( Cont./ 30 Min. ).............AC 15 HP/ 20 HP
LANDIS 4” DIA TYPE “H” PLAIN HYDROLIC O.D. GRINDING MACHINE
(3 on the floor)
Max OD………….4.0”
Max Length………12”
Mazak 15M
Mazak Integrex 200-IISY with Quick Load Servo
Mazak VTC - 16B
Mazak VTC - 16B2
Mazak VTC - 16B3
Mazak VTC - 16B4
Mazak VTC - 16B5
Mazak VTC - 16B6
<
>
4 - 5
